Instrument Interface

Instrument Interface

Befaco

Regular price $1,860.00 HKD Sale

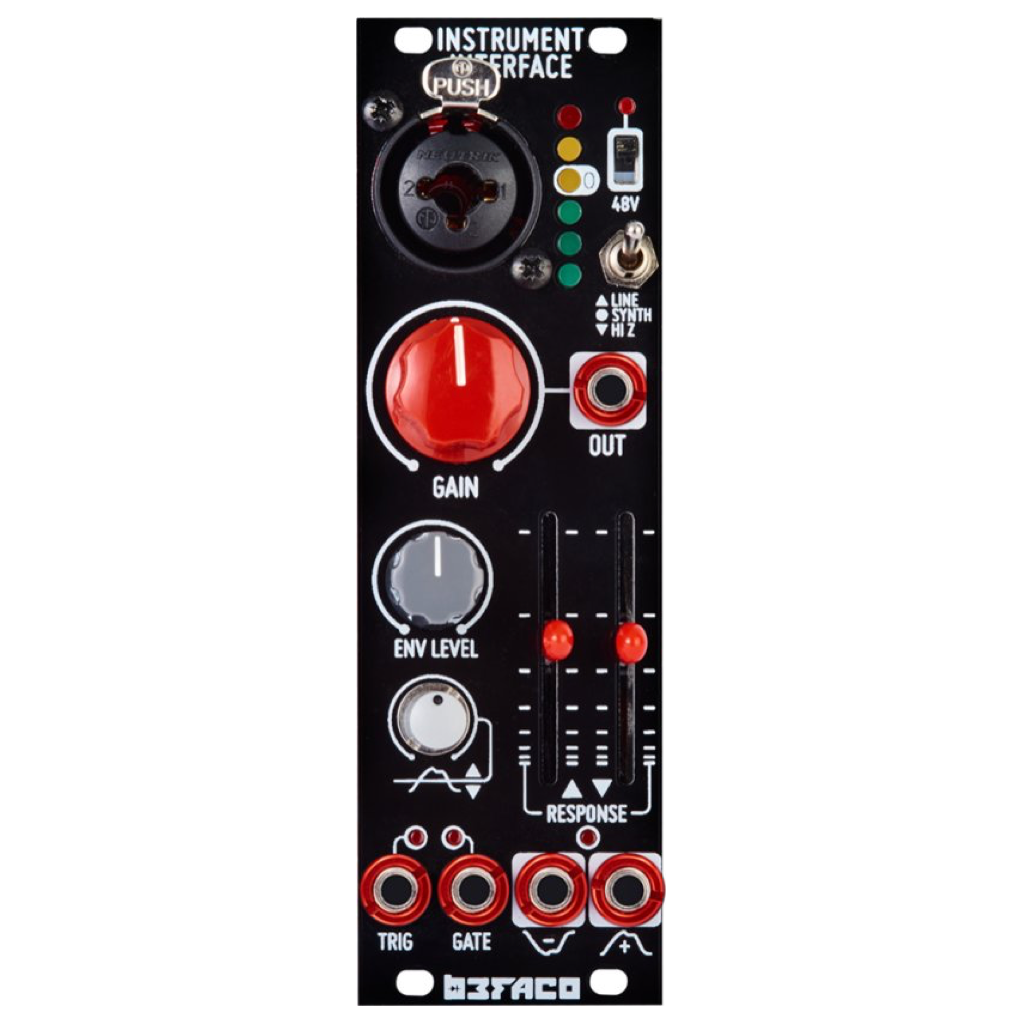

Instrument Interface is an eurorack pre-amp capable to bring any type of audio signal to modular levels thanks to its amplification circuit.

The module can drive regular and condenser microphones (+48V Phantom Powered) as well as Instrument and Line signals with a very low distortion ratio.

Instrument Interface offers some additional extra functions like a Trig/Gate extractor and Envelope Follower circuits, allowing you to use the character of your audio signal in more creative ways



FEATURES

  • Neutrik combo Input
  • Phantom Power selector
  • Input Impedance selector
  • Separated Audio en Envelope Level controls.
  • Envelope Follower with attack and decay control
  • Gate and Trigger Extractor with threshold selector.

SPECS

  • Current needs: +12V: 26mA, -12V: 12mA
  • Width: 8 HP
  • Depth: 30mm (including power connector)
  • Aluminium, heat-treated front panel.
  • Designed, kits prepared and completed modules assembled in Barcelona.
