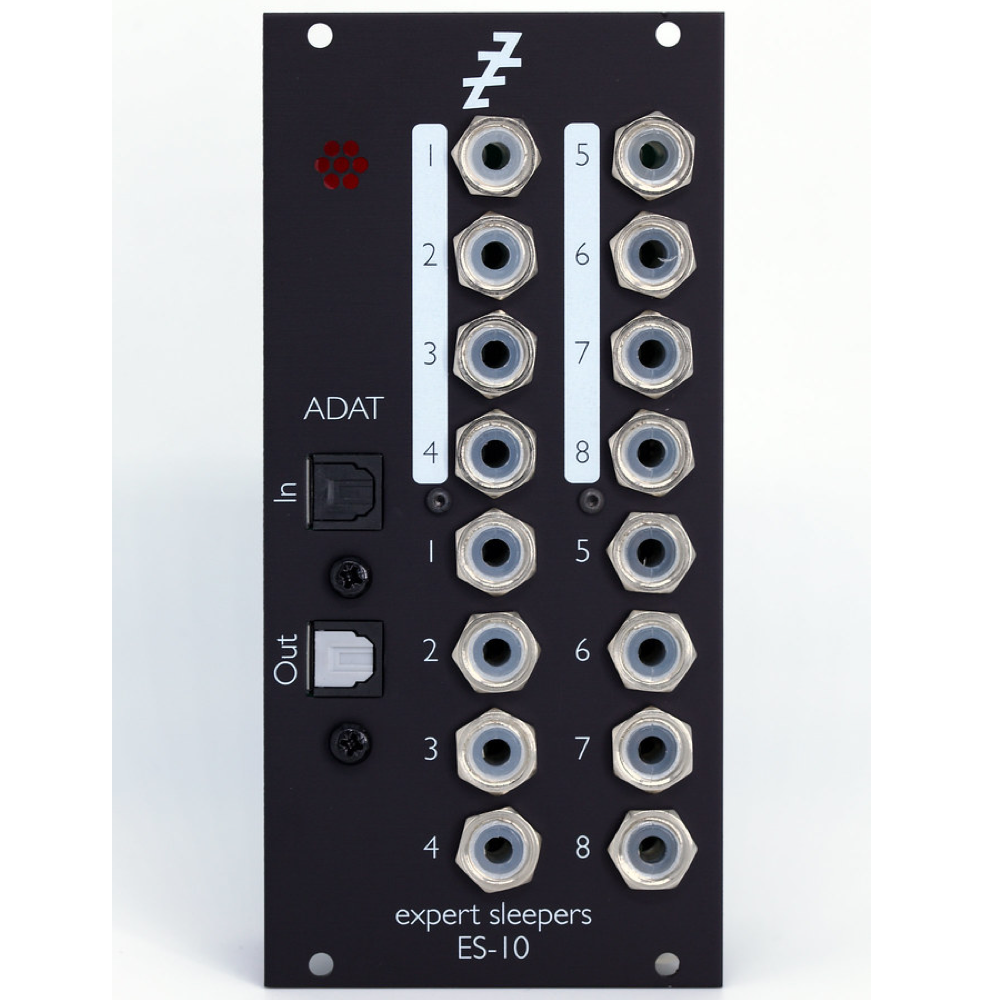

ES-10 expander for ES-9 and ES-3/6/7 replacement
Expert Sleepers
Regular price
$3,060.00 HKD
Sale
Overview
The ES-10 is a compact 8-in/8-out ADAT interface designed for Eurorack modular systems. This versatile module serves as a bridge between your DAW and modular setup, handling both audio and CV signals with professional-grade quality. Featuring AKM 'VELVET SOUND' converters and low-noise op-amps, the ES-10 delivers superior audio performance while consuming significantly less power and rack space than comparable multi-module solutions.
Note: Requires ADAT input connection from your audio interface to operate.
Features
- Dual-purpose I/O: DC-coupled inputs and outputs handle both audio and control voltages
- Flexible input levels: Individual selection between modular and line level operation per input
- Premium audio quality: AKM 'VELVET SOUND' DACs/ADCs with low-noise op-amps
- Expandable design: Built-in expansion header for ES-5 module connectivity
- Space-efficient: Replaces ES-3/6/7 combination with better specs and smaller footprint
- Power efficient: Dramatically reduced current consumption compared to multi-module alternatives
Specifications
Physical:
- Panel width: 12HP
- Module depth: 35mm (including power cable)
- Current draw: 132mA (+12V), 90mA (-12V)
Inputs:
- 8× 3.5mm TS jacks
- DC or AC coupled
- Modular or line level selectable
- Maximum voltage: ±12V
Outputs:
- 8× 3.5mm TS jacks
- DC coupled
- Maximum voltage: ±11V
Connectivity:
- ADAT interface (requires ADAT input)
- Expansion header for ES-5 module
Key Differences Between ES-9 and ES-10
| Feature | ES-9 | ES-10 |
| I/O Count | 8 ins, 8 outs (+ADAT) | 4 ins, 4 outs (-ADAT) |
| USB Interface | YES (USB-C) | No (requires EX-9 or other) |
| ADAT | Yes | No |
| Headphone Out | Yes | No |
| Standalone | Fully standalone | Needs expansion for full use |
| Mixer | Built-in configurable mixer | No built in mixer |
| Best Use Case | Primary audio / CV interface | Expander or minimal / IO |
Which One Should You Get?
- Get the ES-9 if you need a **full-featured audio/CV interface** with USB, ADAT, and standalone operation.
- Get the ES-10 if you already have an ES-9 and need extra I/O, or if you want a smaller interface to pair with other Expert Sleepers modules (like the ES-5/ES-6).
The ES-10 is more of a companion module, while the ES-9 is a complete solution. If you're just starting, the ES-9 is the better choice unless you specifically need a smaller expander.
