Atlantix Dual Oscillator Subtractive Analog Synth Voice

Overview

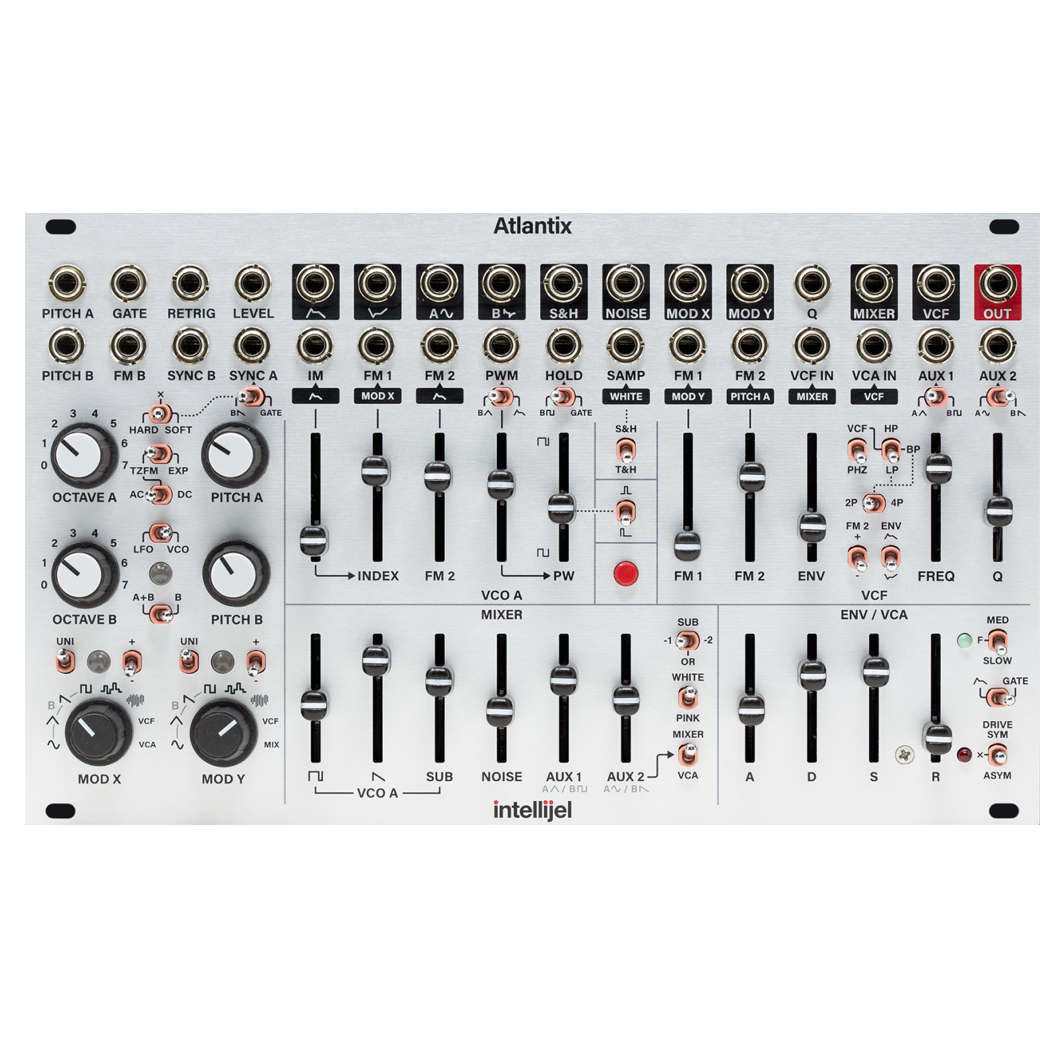

The Atlantix is a complete analog subtractive synthesizer voice packed into a single 42HP Eurorack module. Inspired by the classic Roland SH-101, this highly-anticipated successor to the Intellijel Atlantis delivers immediate, rich bass and lead sounds while opening up massive sonic possibilities through flexible patching and advanced features. With dual VCOs, multimode filter, VCA with drive, ADSR envelope, and 32 patch points, the Atlantix provides all the fundamental building blocks needed to expand or start your modular setup.

Features

Dual Oscillators with Advanced TZFM

• VCO A: Triangle core with thru-zero frequency modulation and dedicated FM INDEX amplifier
• VCO B: Dual-purpose LFO/VCO with bonus "spike" waveform (square wave with fixed HPF)
• Both oscillators track precisely over 8+ octaves
• Flexible mixer section with sub-oscillator, noise, and two auxiliary inputs

Multimode Filter

• Discrete cascaded 4-pole filter with lowpass, bandpass, highpass, and phaser modes
• Self-oscillating capability producing clean sine waves that track 1V/Oct
• Three frequency modulation sources with polarity switches

Envelope & Modulation

• Classic analog ADSR with three timing ranges (slow, medium, fast)
• Manual gate button and external gate input
• Two 8-position rotary switches for modulation routing (MOD X and MOD Y)
• Analog Sample & Hold circuit with multiple clock sources
• Built-in normal switches for cable-free patching

VCA with Drive

• Integrated VCA stage with drive capability
• Velocity control option through envelope VCA

Expandability

• Atlx Expander (optional): Adds 16 additional jacks including dedicated waveform outputs, filter outputs, and ring modulator
