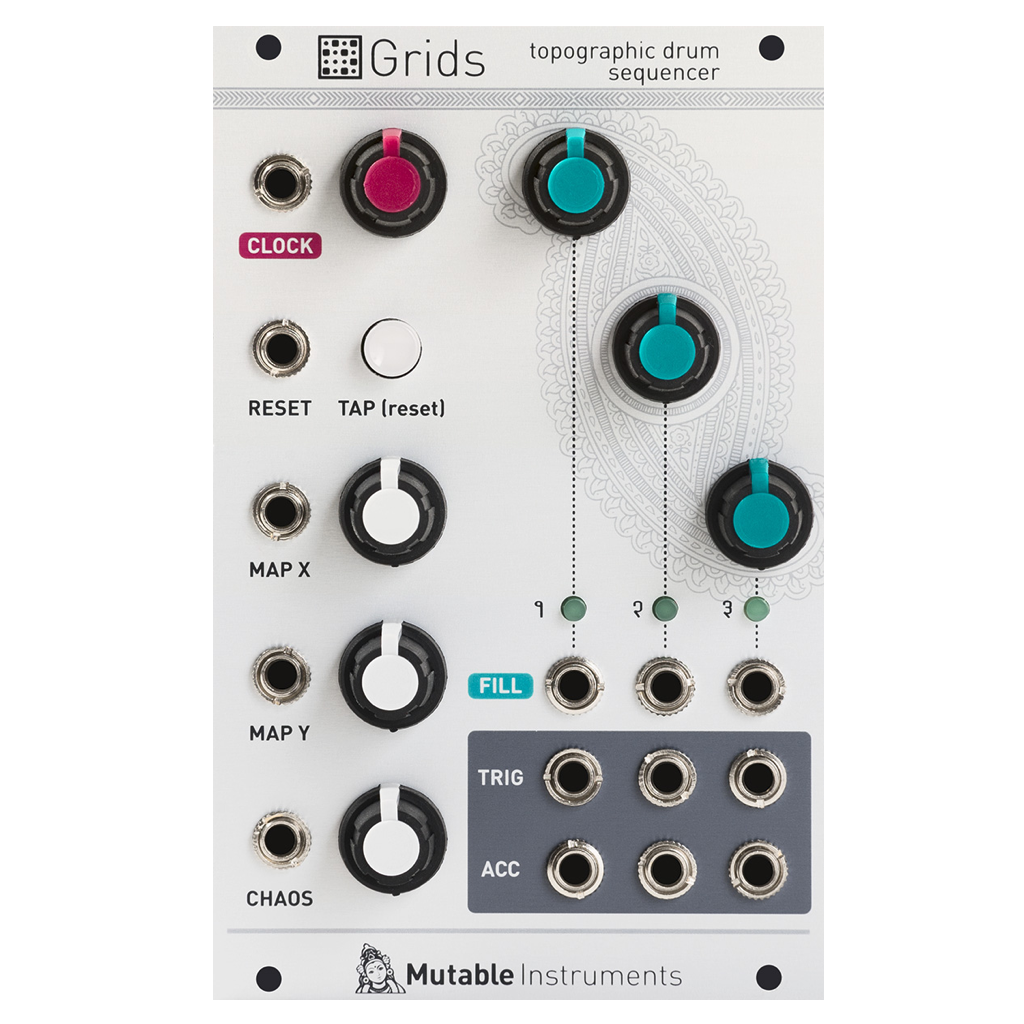

Grids

Grids

Mutable Instruments

Regular price $1,800.00 HKD Sale

Topographic drum sequencer

YOUR DRUM SECTION WILL NEVER BE THE SAME AGAIN…

Take the user interface of an euclidean sequencer, a healthy dose of machine learning and graph algorithms, megabytes of drum loops, hours of intensive computations and you’ve got a drum pattern generator like no other.

Grids’ “brain” is a map of the typical drum patterns used in (mostly electronic) music, laid out by similarity, trained on a large corpus of drum loops. The module can smoothly interpolate and navigate from one pattern to the other, at the whim of a knob move or a CV.

But Grids’ knowledge of drum patterns goes far beyond what would be achieved with presets – given a position in the map, thousands of variations can be intuitively generated by controlling the “event density” of each of the 3 channels (bd, sd, hh) – gradually moving from a sparse backbone to a deliciously rich pattern with ghost notes, rolls and fills.

… ESPECIALLY WHEN MODULATED BY A NOISE SOURCE!

Add CV-control on these parameters and you can add subtle or drastic variations to the drum pattern. If you don’t want to waste a noise source or S&H for that, Grids has its own internal source of randomness that can unpredictably spice the pattern, in an always meaningful way.

Building the rhythmic foundation of your tracks with Grids is fun, surprisingly intuitive, with modulation and variations possibilities that will rapidly make you forget x0x-style sequencers.

16HP

25mm

+12V:25mA

-12V:1mA

Clocking

  • Internal clock with a 40 to 240 BPM range.
  • Beat indicator / Tap tempo button (reconfigurable as a reset button).
  • External clock input, with selectable resolution (24, 8 or 4 ppqn).
  • Pattern reset trigger input.

Drum pattern generator

Based on a compressed representations of drum patterns and their variations.

  • X/Y (pattern selection) knobs with CV inputs.
  • Pattern complexity/density knobs for channels 1, 2, 3, with CV inputs.
  • Pattern randomization knob with CV input (reconfigurable as a swing control for the internal clock).
  • 3 output channels (BD, SD, and HH/percussion).
  • 3 additional outputs, configurable as Accent/Clock/Reset or per-channel accent.
  • Outputs can be either triggers or gates.

Specifications

  • Input impedances: 100k.
  • CV acquisition: 8-bit, 1kHz.
  • Output level: +5V.
  • Clock resolution and processing latency: 120µs. Check the benchmark!
  • Worst case jitter < 0.5% at 120 BPM.
