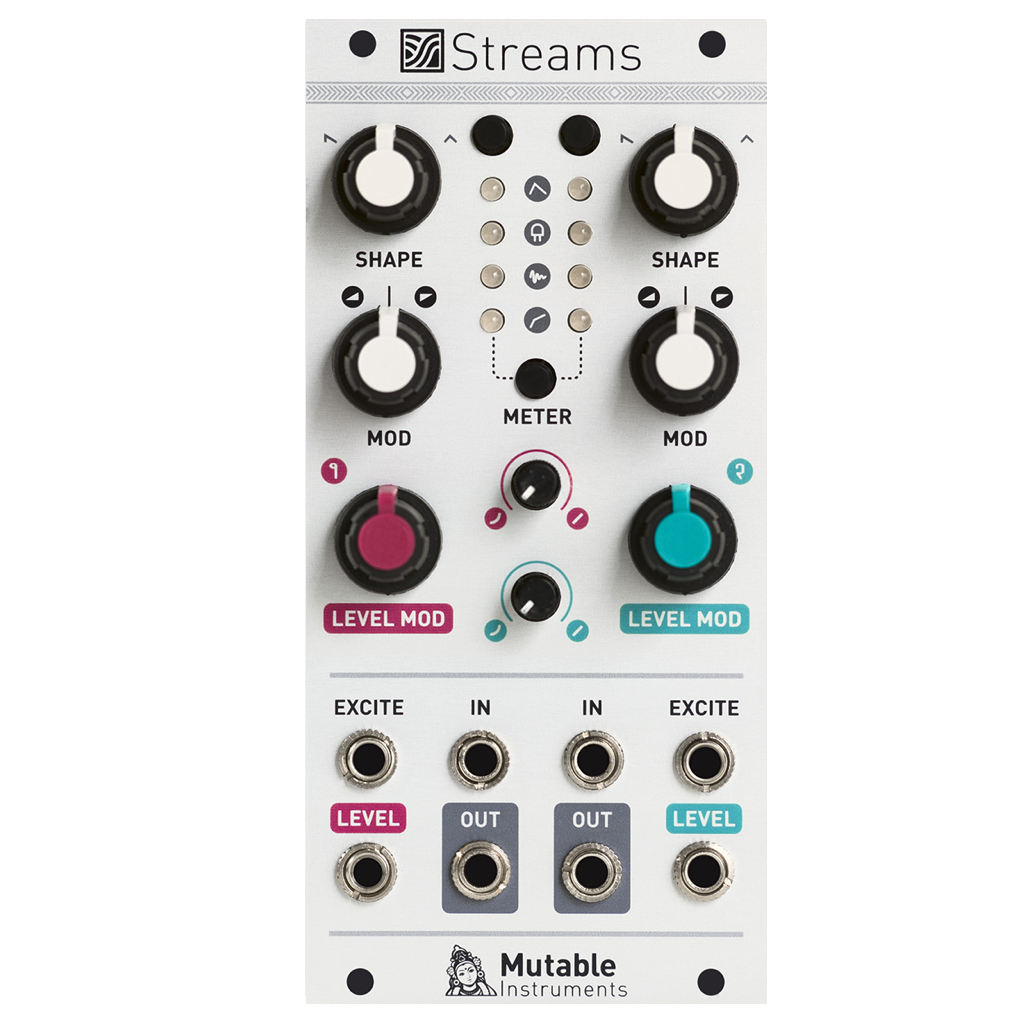

Streams

Streams

Mutable Instruments

Regular price $2,030.00 HKD Sale

Dual dynamics gate

A VC(F)A WITH A BRAIN

Streams provides two channels of extremely flexible signal dynamics manipulation.

Each channel consists of an analog voltage-controlled filter and amplifier (VCFA). The response curve of the amplifier section is continuously variable from exponential to linear. The amplifier gain is directly controllable from a CV input, through an attenuator. But what makes Streams truly unique is the multi-purpose EXCITE input.

The signal routed to this input is analyzed by a micro-controller and translated into internal control voltages for the VCFA, turning Streams into a very versatile signal contouring tool.

12HP

25mm

+12V:100mA

-12V:30mA

Four dynamics manipulation functions

Envelope generator

The EXCITE input can work as a trigger input, triggering an internal AD or AR envelope routed to the gain and the filter cutoff (in variable amount). With only 6-HP of space, you can shape an oscillator or noise source into a full-bodied sound.

Vactrol curve generator

The EXCITE input is processed by a digital model of a resistive opto-isolator (Vactrol), controlling the gain and the filter cutoff (in variable amount).

The digital emulation allows the modification of properties of opto-isolators – such as response time – which are otherwise difficult to control.

The virtual vactrol response can be either optimized for processing CVs, or triggers (for “plucked” sounds).

Amplitude and frequency content follower

The envelope and cutoff of the EXCITEsignal is measured, and applied to the signal on the VCFA input.

Compressor/limiter

Streams’ VCF is disabled, and the VCA is used to control the dynamics of the input signal.

An intuitive control scheme allows the compressor to be used either for peak reduction/limiting operation; or for boosting signal levels with soft-limiting. The EXCITEinput can be used as a sidechain.

Specifications

  • Analog signal path.
  • All inputs DC-coupled.
  • 12-bit, 31kHz EXCITE signal acquisition (for metering and following).
  • 16-bit, 31kHz control voltage generation.

Signal flow
