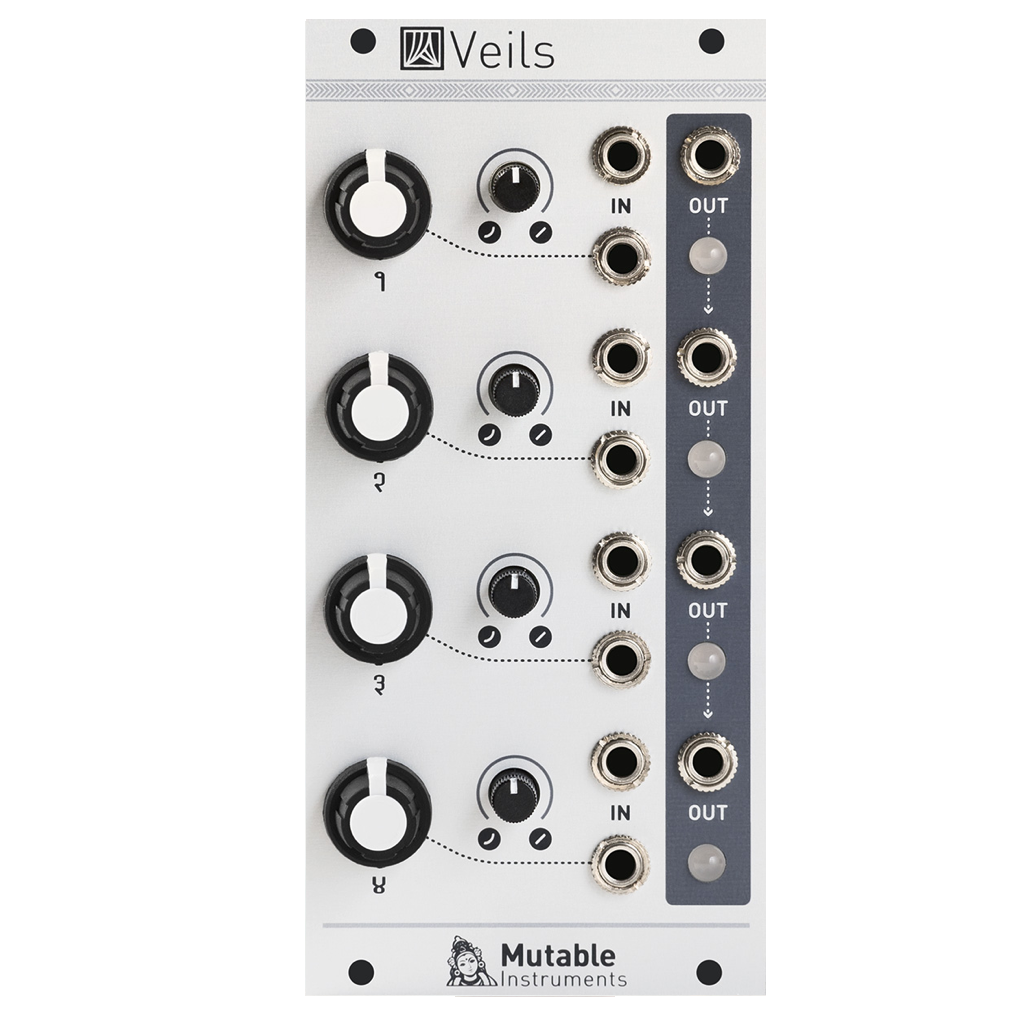

Veils

Veils

Mutable Instruments

Regular price $1,560.00 HKD Sale

Quad VCA

WHO SAID YOU NEVER HAVE ENOUGH VCAS?

Veils provides four VCAs with an adjustable response curve.

Veils’ outputs are daisy-chained, allowing adjacent groups of 2, 3, or all 4 channels to be mixed together.

12HP

25mm

+12V:50mA

-12V:50mA

The cornerstones of modular patches

VCAs are absolutely essential in a modular system, for example for:

  • Shaping the amplitude or timbre of a tone with an envelope
  • Animating a mixture of several oscillators
  • Controlling the amount of filter modulation with a random source or a touch controller.
  • Applying an envelope on the linear FM signal hitting an oscillator

Specifications

  • All inputs DC-coupled.
  • All inputs handle audio-rate signals.
  • Input impedance: 100k for all inputs.
  • Gain scale: a +5V CV translates to a gain of 1 (0dB), both in linear and in exponential mode.
  • Gain range: maximum gain of 2 (+6dB) in linear operation, 10 (+20dB) in exponential operation.
