WARNING: Vortices must be in EXP mode when using V-CV.

Please read the V-CV section in the manual for more details

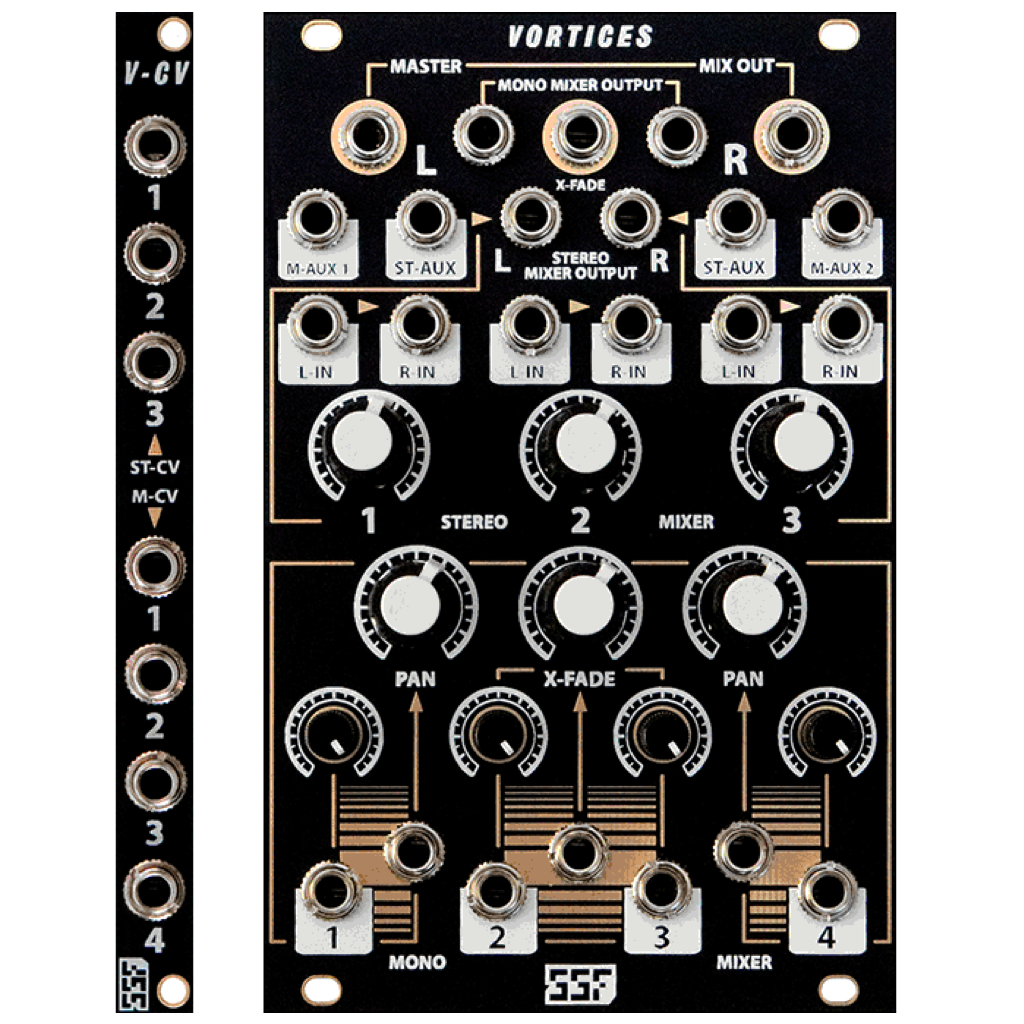

Vortices

16hp Character mixer modeled after vintage analog consoles and magnetic tape machines.

Featuring:

• 6 channel Mono Mixer including 4 attenuated inputs with tape saturation and level control, hard limiting and high frequency tone shaping.

  • VC Panning on Channels 1 & 4

  • VC Cross-Fading on Channel 2 & 3

  • 2 Auxiliary Mono inputs

  • Stereo Output

  • Direct Cross-Fader Output

• 8 channel Stereo Mixer (4 stereo pairs) including 3 attenuated inputs with lighter coloration, hard limiting and a brighter frequency response.

  • L>R Normalized to accommodate mono signals

  • 1 Auxiliary Stereo input

  • Stereo Output

• Master Mix Output

• Stereo Jack Master Mix Output on the back of the PCB

• V-CV Expander included. Adds level/saturation control for all attenuated mixer channels.

More info can be found in the Vortices Manual Download HERE
