100 Grit distortion, VCA, low pass filter

Schlappi Engineering

Regular price $2,040.00 HKD $2,040.00 HKD Sale

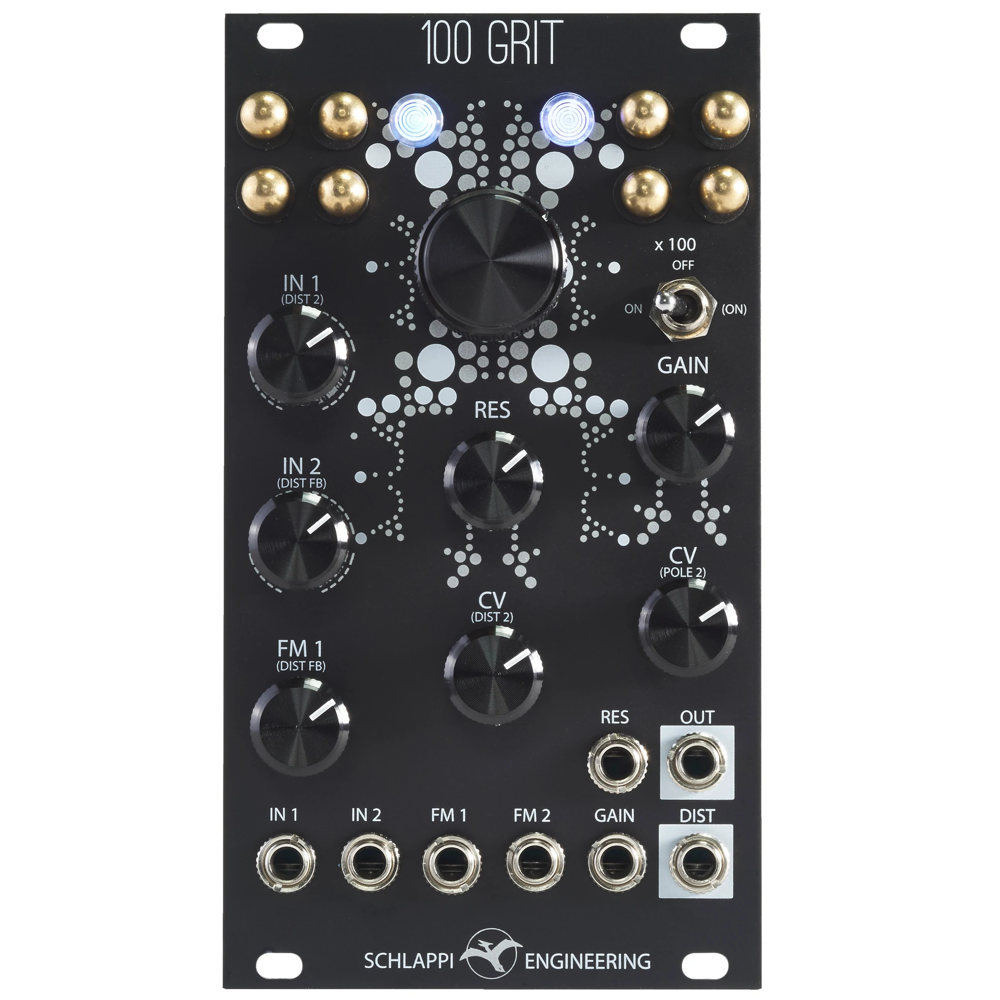

The 100 grit is a distortion, VCA, and low pass filter module with 8 brass touchpoints.

100 Grit block diagram

Features:

  • 8 brass touchpoints
  • 2 inputs to transistor core low pass filter
  • Voltage control over frequency, resonance, and gain
  • OTA VCA with soft saturation characteristics
  • Distortion circuit based around a vintage headphone amplifier driven into instability
  • Three position x100 gain switch with off, on, and momentary on settings
  • Each input and cv input is normalled to a different feedback path (6 total)
  • Seperate outputs for the VCA and distortion
  • Can operate as a vintage voiced VCA and LPF or a screaming distortion and noise effect
  • All analog design
  • 14 HP
  • Skiff friendly 25mm depth
  • POWER DRAW: +12V 55mA, -12V 70mA

Download quickstart guide here

Download manual here
