Performance Case - 104hp 7U

Intellijel Designs

Regular price $6,090.00 HKD Sale

Features

  • Two 104 hp rows (6U) of Eurorack module space.
  • One 104 hp row for Intellijel 1U modules.
  • Threaded M3 strips for mounting modules.
  • Available with the high spec TPS80W (TPS80WMAX in the 104 hp version) power supply capable of powering up to 20 modules with +12 V output at 3000 mA, -12 V output at 3000 mA and +5 V output at 1500 mA

Construction:

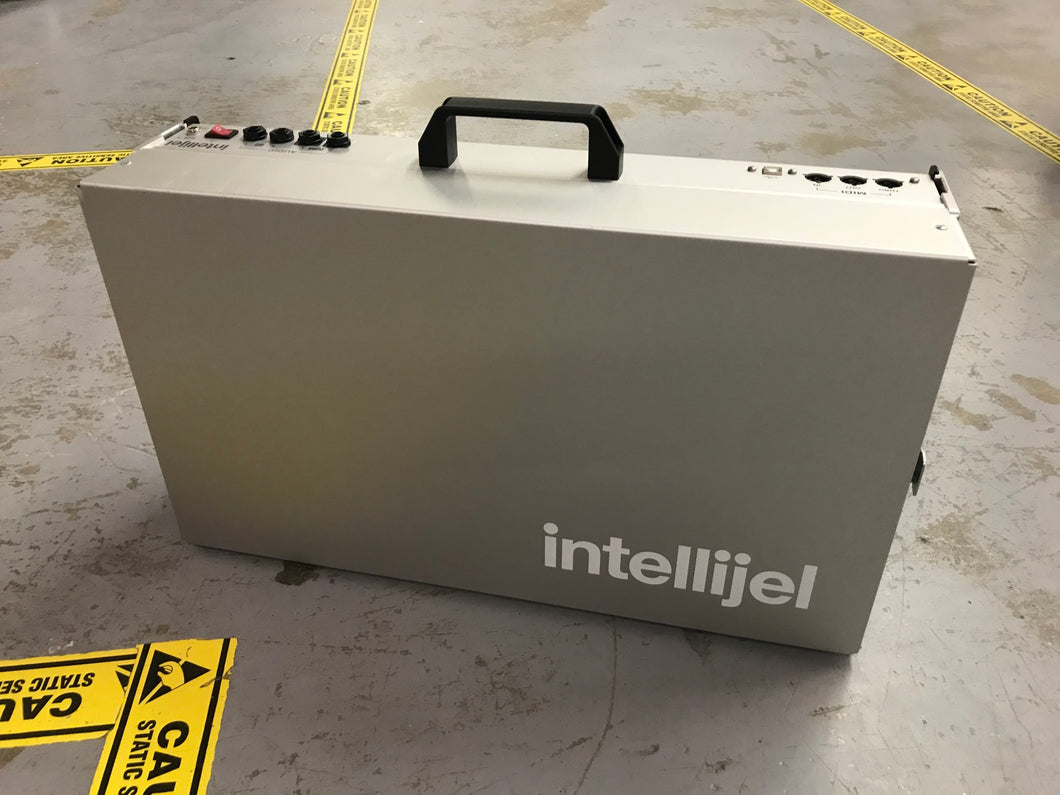

  • Solid plastic carrying handle.
  • Anodized aluminum lid with latches, deep enough to close the case with cables patched in.
  • Retractable feet that can support the case at two different angles. Or lay the case flat on a table.
  • Plastic feet for resting the case on the table.
  • Rubber feet on bottom side of lid so the case can stand vertically with the lid attached.
  • Spring-loaded latching accessory slots on top and bottom of the case. The slots can be used to attach two cases together and for the carrying strap.

Rear panel:

  • Four 1/4″ audio jacks that can be connected to the Audio I/O 1U. Two ins and two outs.
  • MIDI In, Out, and Thru jacks. The In jack can be connected to the µMIDI 1U and will pass to the Thru. The Out is for future expansion.
  • USB port that connects to the µMIDI 1U and other future modules.
  • Rocker switch and barrel plug for power entry.

104HP Version:

Max. internal depth for modules: 70 mm
Internal depth for modules above the highest point of the power bus board:  53 mm

  • Outside dimensions with lid:  312 mm x 165 mm x 546 mm
  • Outside dimensions without lid: 312 mm x 83 mm x 546 mm
  • Weight: 2.7 kg with lid, 3.0 kg with lid and power adapter*
  • Power: TPS80WMAX +12 V output at 3000 mA, -12 V output at 3000 mA, +5 V output at 1500 mA
