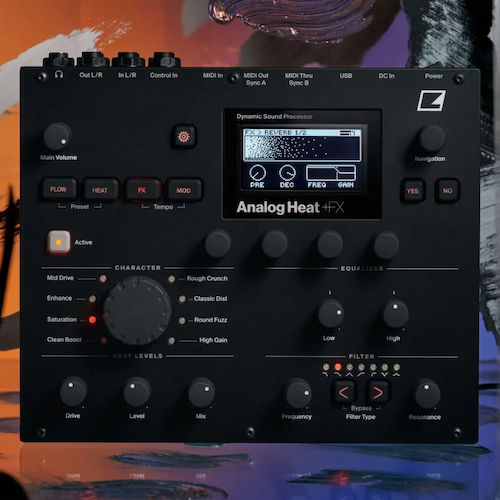

Let the sonic paint drip over your beats, melodies and sounds. The Analog Heat +FX is an all-around sound colouring and manipulation box. It gives you a wide color palette of processing possibilities. Reordering them to experiment and find your own signal flow, with your own special timbres. Whatever the source, and wherever the destination. Enhance, destroy, ignite, and make it drift – let your sound be your canvas.
Specifications
Sound processing
- 8 × stereo analog distortion circuits
- Stereo analog multi-mode filter (7 filter types)
- 2-band adaptable stereo analog EQ
- Noise Gate
- Reverb
- Delay
- Chorus
- Warble
- Bits
- Compressor
- Bass focus
Modulation
- 1 × assignable envelope generator/envelope follower with two destinations
- 3 × assignable LFO (with two destinations per LFO)
Hardware
- 128×64 pixel OLED screen
- MIDI In/Out/Thru with DIN Sync out
- 2 × ¼″ balanced audio out jacks
- 2 × ¼″ balanced audio in jacks
- 1 × ¼″ stereo headphones jack
- 2 × ¼″ CV/Expression pedal input jacks
- 48 kHz, 24-bit D/A and A/D converters
- Hi-Speed USB 2.0 port
Audio outputs
- Headphones out level: +19 dBu peak
- Headphones output impedance: 36 Ω
- Impedance balanced main outputs level: +19 dBu peak
- Main outputs impedance: 440 Ω unbalanced
Audio inputs
- Balanced audio input level: +19 dBu peak
- Audio input impedance: 39 kΩ
Control inputs
- Input level: -5 V – +5 V
- Accepts CV, expression pedals, footswitches
Physical specifications
- Sturdy steel casing
- Dimensions: W215 x D184 x H63 mm (including audio outputs, knobs and feet)
- Weight: approximately 1.5 kg
- 100x100 mm VESA mounting holes
Miscellaneous
- Overbridge enabled
- Class compliant USB audio
- 3 year Elektron warranty
Included in the box
- Power Supply PSU-3c
- Elektron USB cable
