Black EG

Black EG

Regular price $1,100.00 HKD Sale

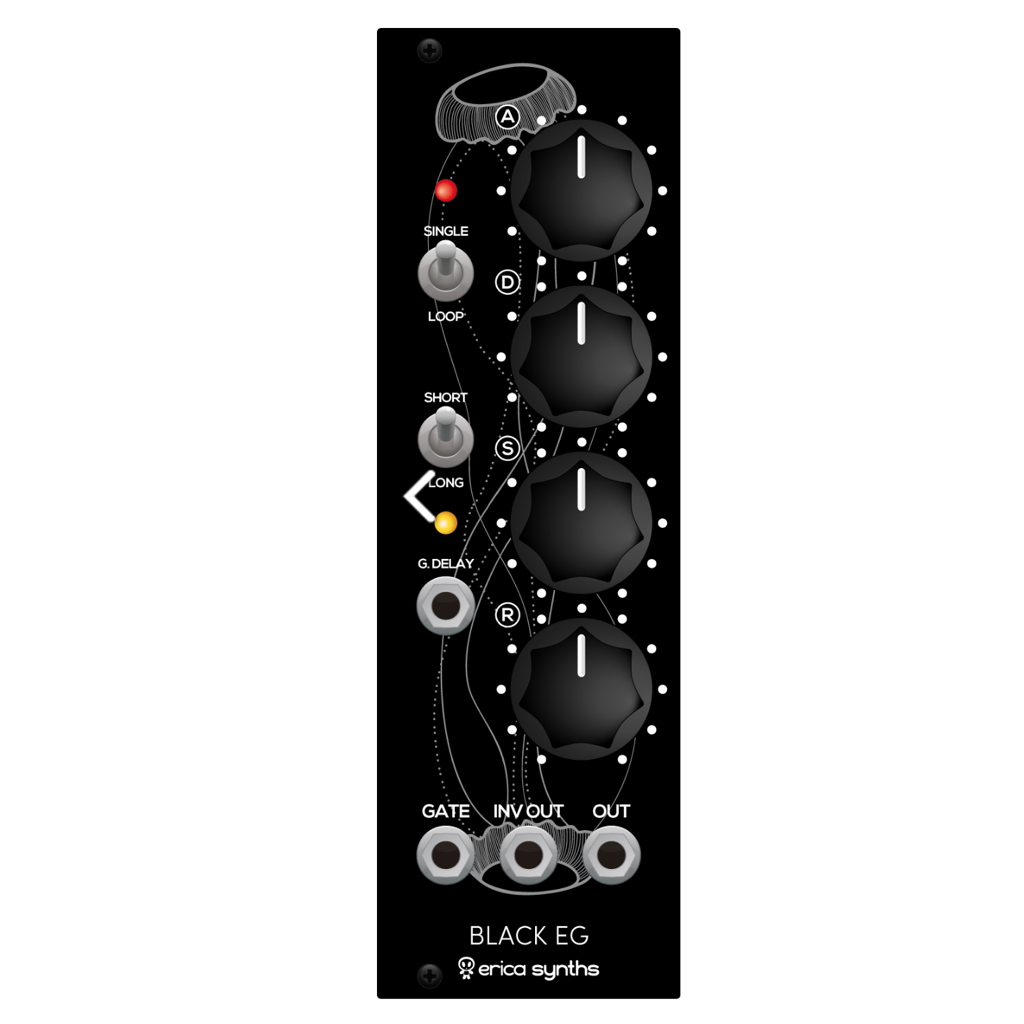

Erica Synths Envelope Generator is compact, full analogue envelope generator with some cool bonus features like gated loop and gate delay for nice acid basslines and veeeerrryyy slow drones.

We introduced distinct looping feature (when gate patchcable is patched, looping starts on gate on) and Gate Delay – the module outputs delayed gate signal after Attack stage. Chain up several (4-5) Envelope Generators, each with delayed gate to create evolving polyphonic synth-like pads!

Features:

  • Full ADSR envelope
  • Short/Long envelope switch
  • Direct and inverted envelope outputs
  • Gated and independent looping modes
  • Gate delay (after Attack stage) output
  • Skiff-friendly design

Erica Black series are high-end modules with unique functionality. Only the highest quality components are used and all inputs and outputs are protected against undesired overvoltage. When designing the Black Series, we did not economise on the module width, we put design and usability first. Big knobs are assigned to functions that make difference in sound. The Erica Black series are a range of modules that together make an entire synthesizer.

Technical specifications:

Gate input level

3…10V

Envelope amplitude

0…10V

Attack time (short/long)

0…600ms/6,5”

Decay time (short/long)

0…3”/30”

Sustain level

0…10V

Release time (short/long)

0…3”/35”

Panel width

8HP

Module depth

25mm

Power consumption

25mA@+12V, 15mA@-12V



Erica Black EG on Modulargrid
