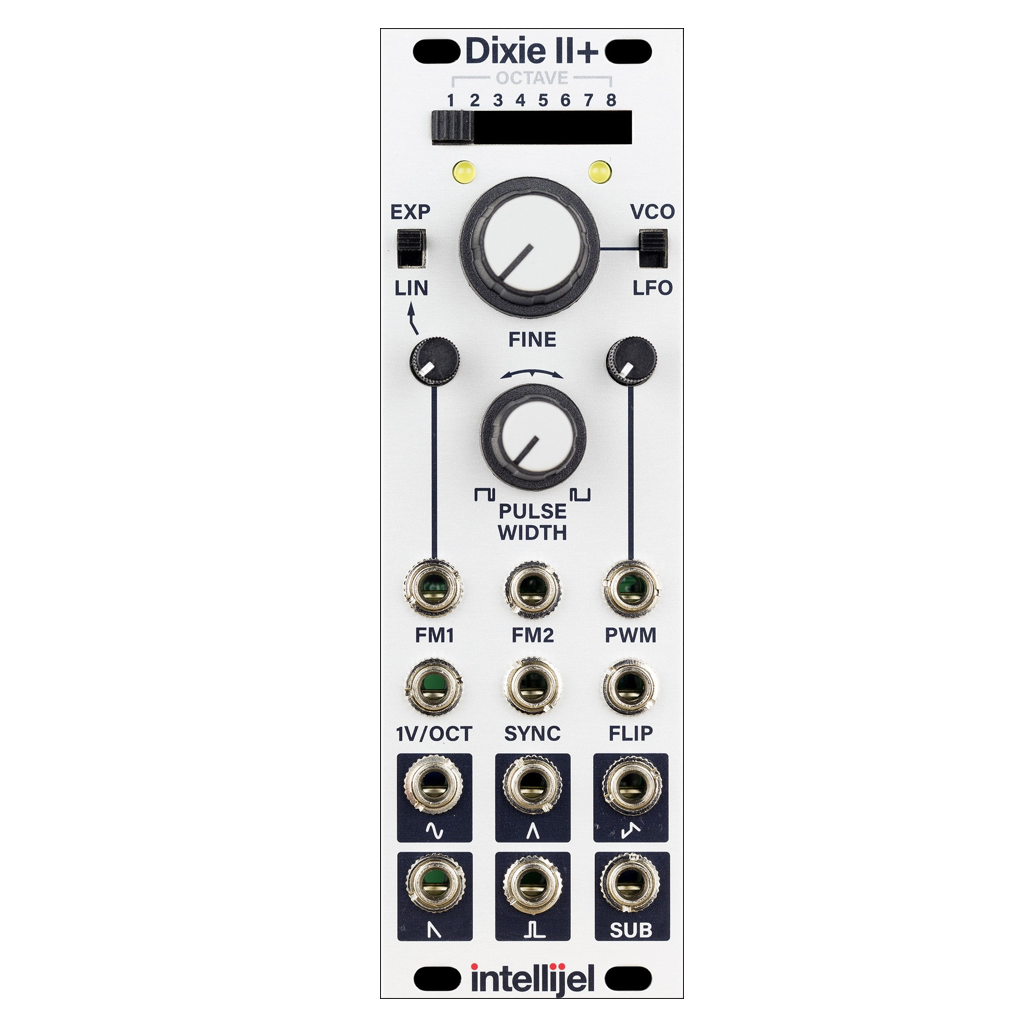

Dixie II+

Dixie II+

Intellijel Designs

Regular price $1,780.00 HKD Sale

Full-featured triangle core VCO/LFO

The Dixie II+ is a larger variant of the classic Dixie II. Using the same great triangle core oscillator, it adds a number of features to make it even more versatile with only a modest increase in size. The Dixie II+ makes a great primary oscillator for a modular system, or a great companion the Rubicon.

Features

  • 8-position octave switch for quick setting of course tuning.
  • Fine tuning knob that turns to a coarse knob when in LFO mode.
  • Dual FM inputs, with FM1 attenuator and switch to select between exponential and linear mode.
  • Pulse width control with attenuator.
  • Reset to 0 V hard sync input, ideal for percussive sounds or modulation.
  • Flip sync circuit similar to but improved from the Dixie II.
  • 6 waveform outputs: sine, triangle, zigzag, saw, pulse and suboctave.
Width:

8 hp

Max Depth:

40 mm

Power:

60 mA @ -12 V
70 mA @ +12 V
