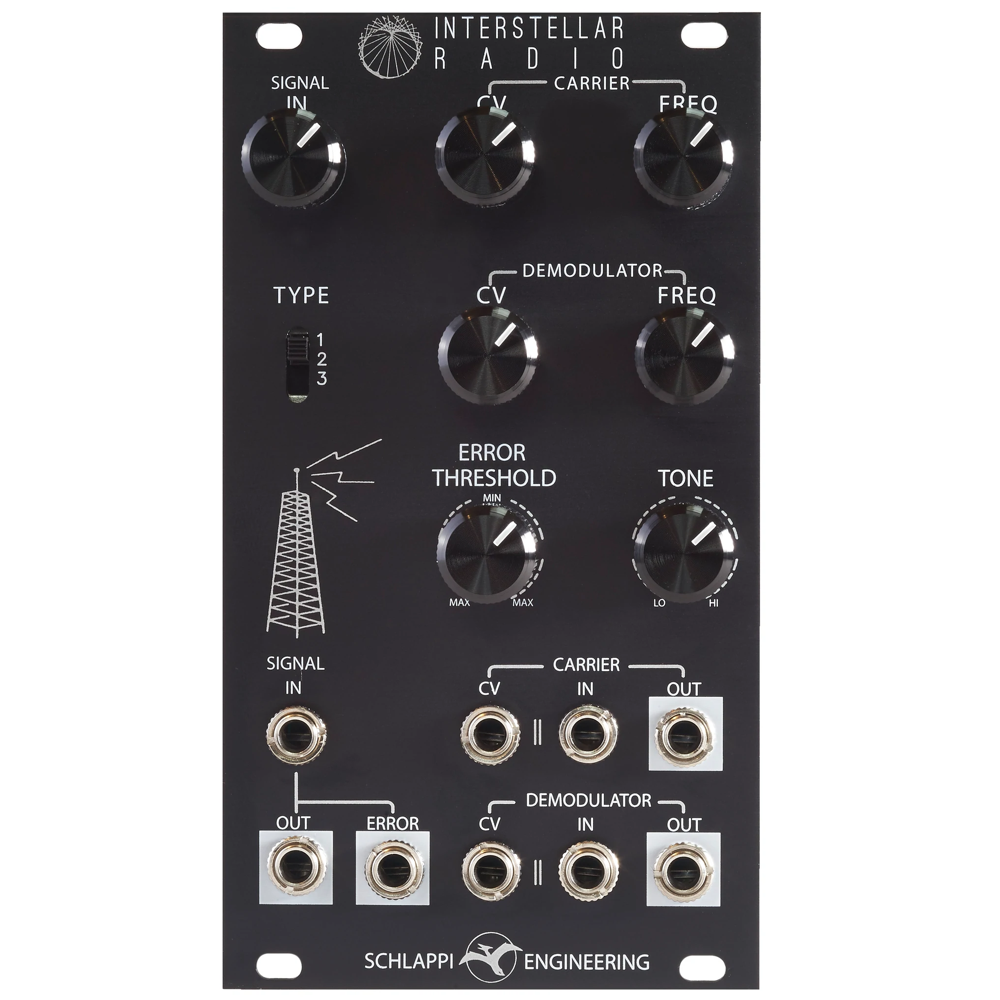

Interstellar Radio signal de/modulator

Schlappi Engineering

Regular price $1,530.00 HKD Sale

The Interstellar Radio is a destructive transmission line. It modulates and demodulates a signal with different clock references which results in extreme distortions and frequency modulation of complex and noisy timbres.


Features
  • Simulates the process of modulating and demodulating a signal for radio transmission
  • Effect or complex oscillator (non v/oct)
  • Voltage controlled aliasing, distortion, and frequency modulation effects
  • Two wide ranging voltage controlled square wave oscillators with individual outputs
  • CARRIER oscillator converts input into high frequency pulse train
  • DEMODULATOR oscillator inside control loop brings sound back to audio range
  • CV applies external voltage control to oscillators or uses input signal as audio rate FM
  • Internal oscillators can be replaced with external modulation sources
  • TYPE selects demodulation loop type (changes timbre and response)
  • ERROR output with threshold control
  • TONE control for filtering out the harshest of frequencies
  • All analog design
  • 14 HP
  • Power requirements :+12V 40mA, -12V 30mA

Download quickstart guide here

Download manual here
