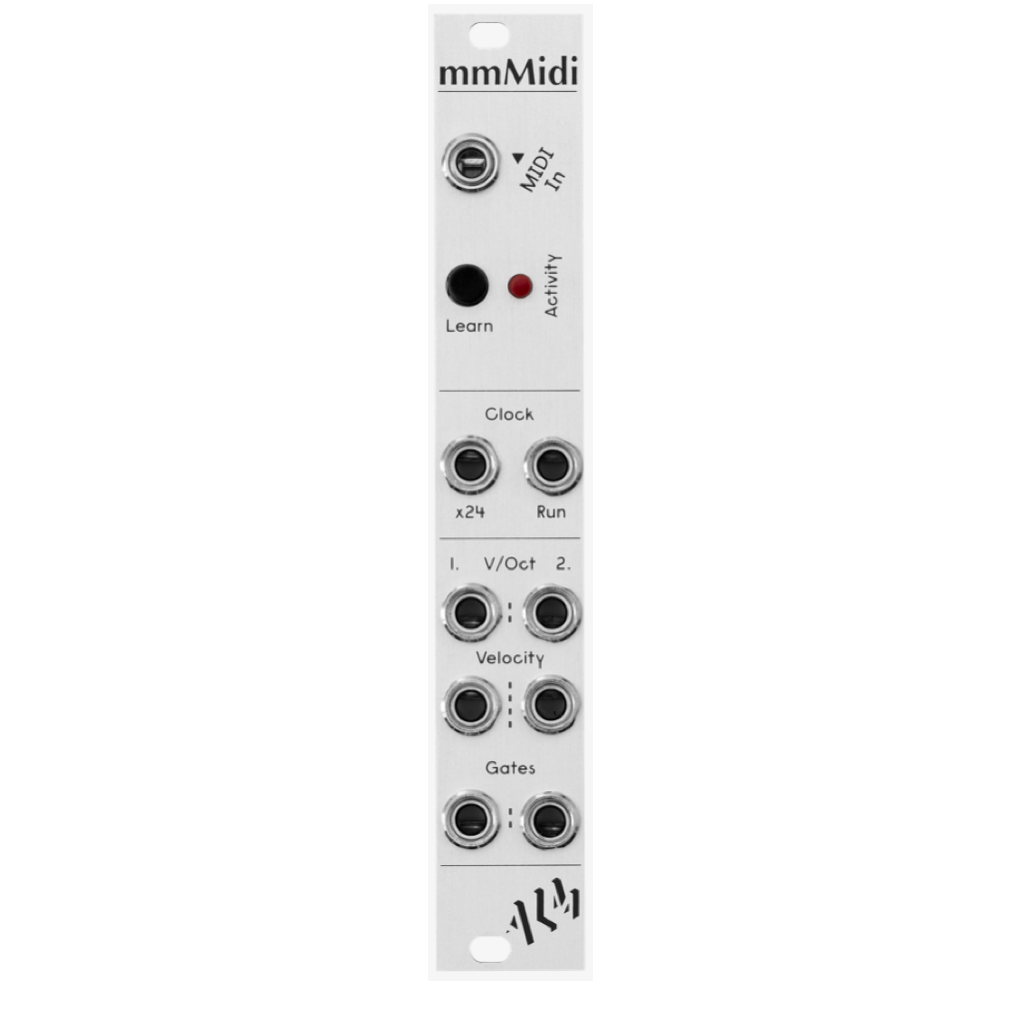

mmMidi : MIDI to CV interface
ALM Busy Circuits
The mmMidi is a simple & compact MIDI to CV interface for your Eurorack synthesiser. It translates both MIDI clock and 2 Channels of MIDI note, velocity and gate information to corresponding voltage control signals. The mmMidi is quick to set up and requires minimal configuration.
The ‘mmT’ is an optional 3HP expander which connects directly to the mmMidi. It maps a third MIDI channel’s key presses to 8 trigger/gate outputs as shown on the mmT front panel.
Easily control a couple of synth voices, sync euro clocks to your MIDI clock and trigger drum or sample modules with optional expander.
- Dual channel conversion of MIDI note, velocity and gate signals.
- Convert MIDI clock signals out into modular signals to sync Pam etc.
- Setup & configure in under a minute.
- Includes TRS-DIN (Type B) adapter for DIN MIDI cable connection.
- Easy firmware update via SYSEX upload.
- Optional mmT expander maps keys presses to 8 gate/trigger outputs
- Skiff friendly with reverse power protection.
- Made in England.
Power: +12V 30mA / -12V 0mA
MIDI response latency: 200-400 uSec
Resolution: 12Bit 0-8V CV outputs. +5v Gates
