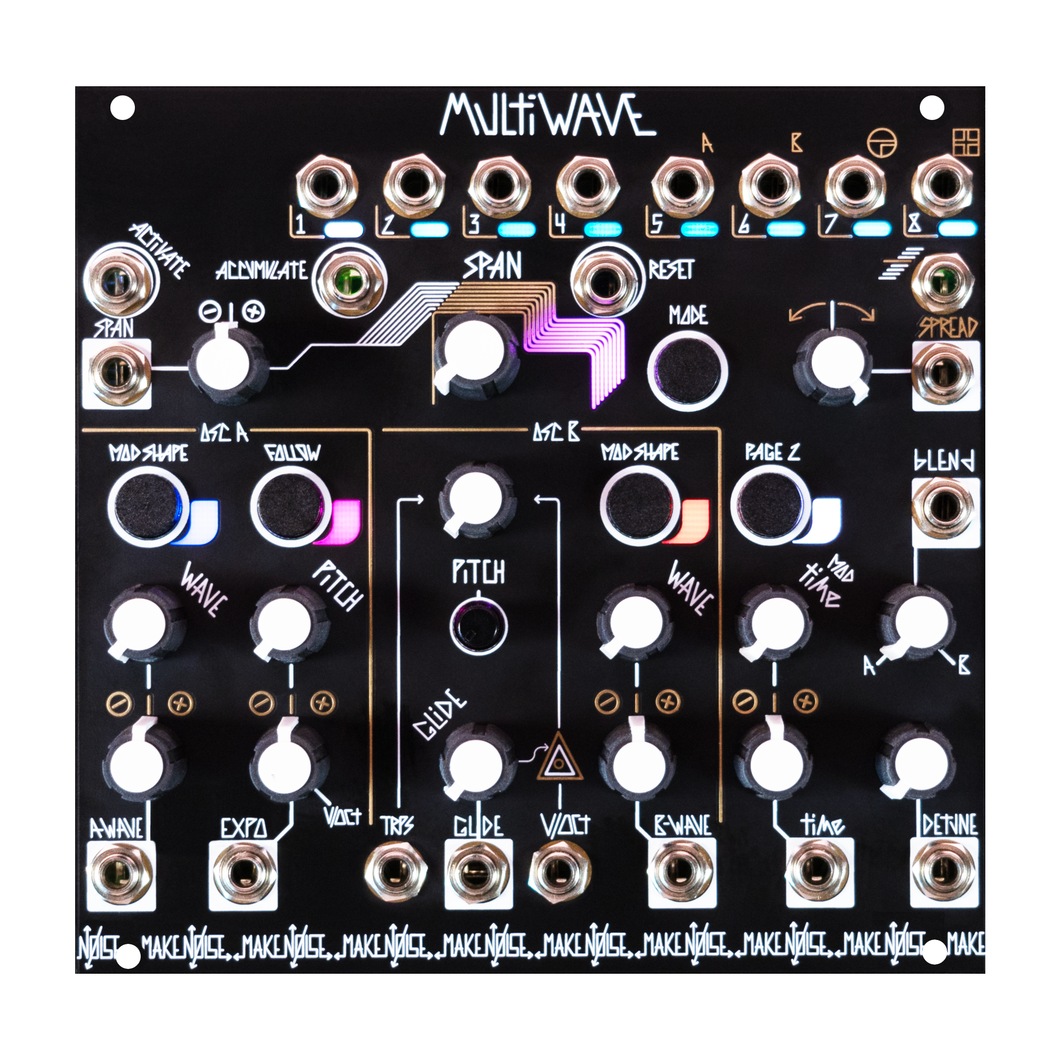

MultiWAVE 8-Channel Dual Wavetable Oscillator

MultiWAVE 8-Channel Dual Wavetable Oscillator

Make Noise

$4,200.00 HKD Sale

Overview

The MultiWAVE is a powerful 8-channel dual wavetable oscillator designed to be the sound of the New Universal Synthesizer System (N.U.S.S.) or a potent addition to any Eurorack modular setup. It features a single, unified set of controls to generate audio waveforms across eight independent channel outputs.

Features

Each of the eight channels contains two independent wavetable oscillators, Osc A and Osc B, with variable frequency, modulation, and wavetable position. MultiWAVE is designed for seamless integration with other N.U.S.S. modules like the PoliMATHS and QXG, creating a versatile 8-channel hybrid polysynth core.Features

  • 8-Channel Dual Wavetable Oscillator: Generates eight independent audio channels from a single control interface.
  • Dual Oscillators per Channel: Each channel features two independent wavetable oscillators (Osc A and Osc B).
  • Sequencing Modes: Sequence Osc A and B (per channel) independently or together using 4 follow modes.
  • Polyphonic Activation: Generate polyphonic activations from monophonic sequences using Modulation Dissemination, Span modes, Spread, and Accumulate.
  • Variable Timbre: Sculpt your sound with variable timbre per channel via Spread and Modulation Dissemination.
  • Control Inputs: Independent V/O inputs per oscillator and a global transpose V/O input.
  • Built-in Polyphonic Quantizer, Detune, and Glide: Includes a built-in polyphonic quantizer and modulatable polyphonic detune and glide.
  • Harmonic Oscillator Mode: Functions as a Harmonic Oscillator when the detune is turned fully clockwise.
  • MultiMod LFO: Modulate wavetables using the built-in MultiMod LFO with independent depth and shape per oscillator.
  • Wavetable Compatibility: Ships with custom Make Noise wavetables and is compatible with the popular Waveedit format.
  • Wavetable Storage: Each wavetable contains 64 waves, and the module can store 8 banks of 8 wavetables.
  • Voltage-Controllable Span Modes: Activate channels in multiple voltage-controllable Span modes: Channel Index (arbitrary order), Round (sequential), and Parallel (per channel clock divisions).
  • Ecosystem Integration: Designed for seamless use with PoliMATHS, QXG, and future N.U.S.S. modules.

Specifications

  • Width: 26 hp
  • Max Depth (incl. power cable): 43mm
  • Power: +12V 250mA, -12V 5mA
