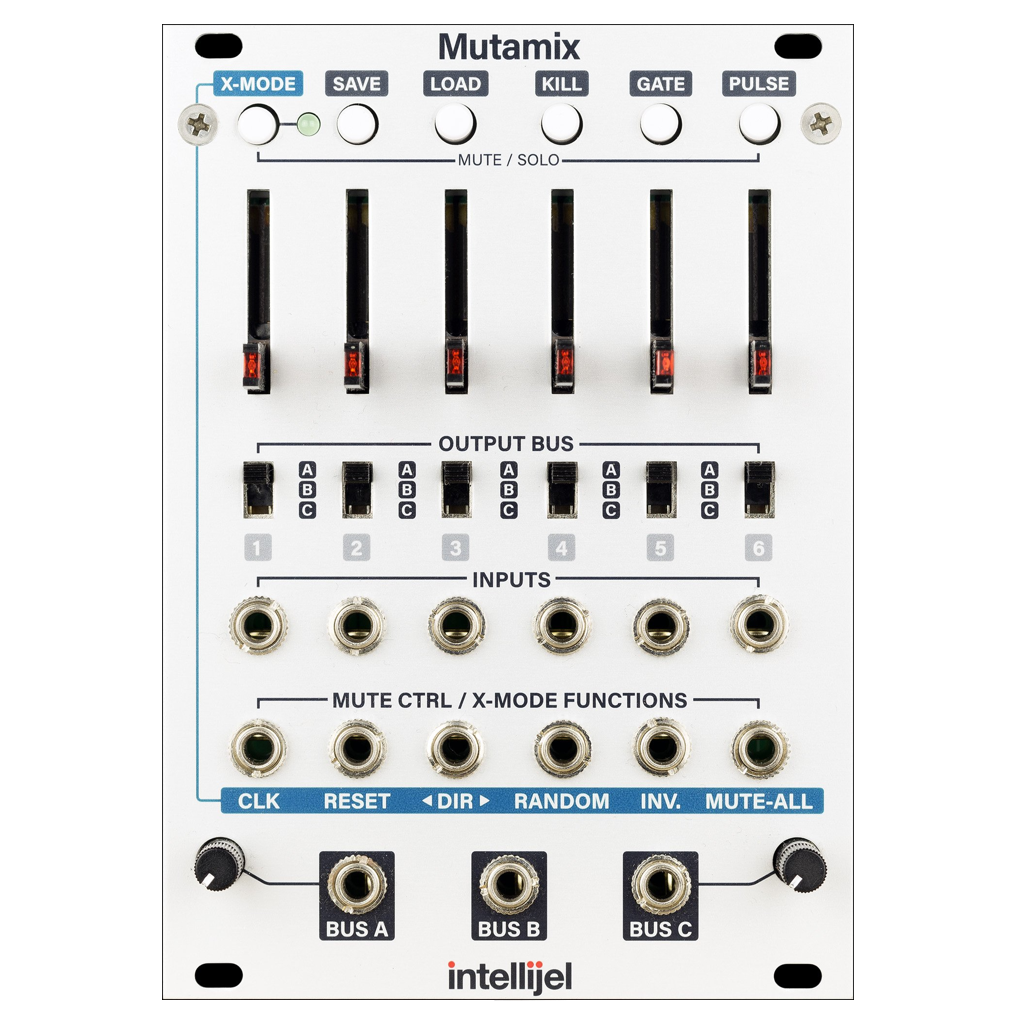

6 channel cv/audio mixer with 3 bus outputs and full digital control of muting patterns
- skiff friendly
- 6 linear LED sliders for input attenuation control
- jumpers to select pseudo log curve (instead of linear)
- all muting realised via VCAs
- 6 audio/cv inputs
- 6 mute/function inputs
- 6 three way bus routing switches.
- 3 audio/cv bus outputs
- 2 linear master output level controls.
- 6 control buttons
- header to normal Linix output to the 6 inputs
