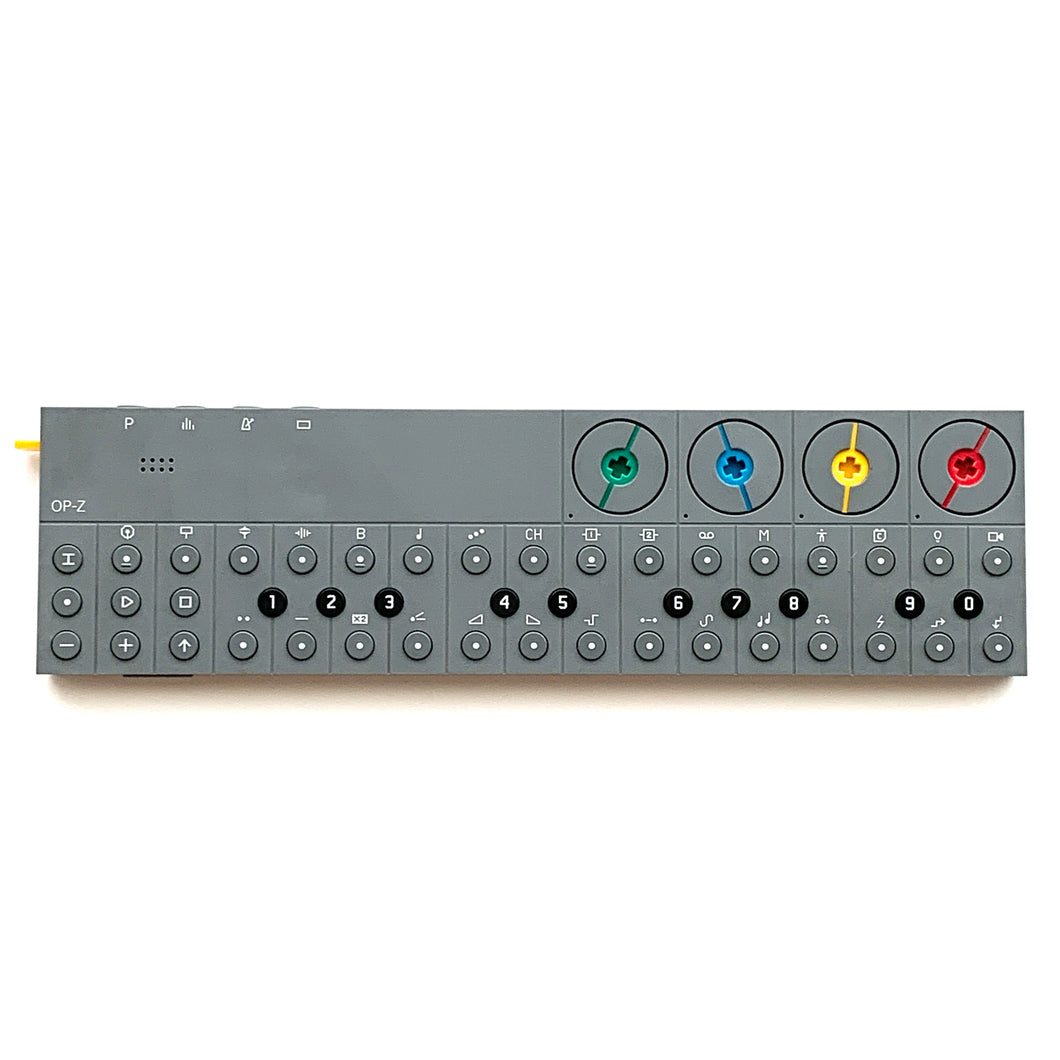

OP-Z Multimedia synthesizer and sequencer

OP-Z Multimedia synthesizer and sequencer

Teenage Engineering

Regular price $4,680.00 HKD $3,978.00 HKD Sale

Overview

The OP-Z is an extremely compact synthesizer, sampler, drum machine. It can not only sequence the above components (with effects, parameter locks, and countless bells-and-whistles), but it can also sequence lighting systems, visuals, and even photos on an iOS app, making it the first all-in-one music and multimedia sequencer capable of simultaneously controlling all aspects of a live performance from the stage. Despite its depth of features and potential for complexity, its pencil case size means that it can also be taken on the road for simple and fun jamming - perfect for long commutes or for time away from a screen.

Combining parameter locks and sequences of different lengths can lead to a world of generative sequencing, which will appeal to modular synth users. Furthermore, when combined with the Oplab Module ZM-1 (sold separately), the OP-Z can also interface with the Pocket Operators, modular synths or any other gear that uses CV and gate signals!

Hardware features include a usb-c host and device, wireless communication over ble, 4-pin 3.5 mm stereo headphone and line-out, accelerometer, user replaceable battery and built-in microphone (comes with a USB-C to USB-A cable).

Details

  • analog devices blackfin 70X dsp
  • cirrus logic audio co-processor
  • 1250 mmacs
  • 48kHz 24-bit dac
  • 115 dB dynamic range
  • 6 axis motion sensor
  • integrated mems microphone
  • bluetooth 5.0 LE
  • 6 hour battery life
    • 1 year stand-by time
    • user replaceable
    • Li-Ion 740 mAh
  • usb type c
  • 3.5 mm 4-pole jack
  • 2 octaves of musical keys
  • 51 mechanical keys in total
  • pressure sensitive pitch bend
  • 4 x multi purpose color coded high resolution encoders
  • volume knob / on switch
  • pairing button
  • 29 rgb+w led indicators
  • 24 w led indicators
  • rigid engineering plastic housing
  • IXEF 1022 PARA + 50% glassfiber
  • teenage engineering designed floating ball bearing hall sensor encoders for minimal stacking height and wear
  • L 212.5 mm, H 57.5 mm, D 10 mm
  • + 6 mm length for volume knob
  • included in package
    • usb type c to usb a for charging and control



Format Standalone
Functions

Synthesizer, Sequencer, Sampler, 3D Video Sequencer, DMX Lighting controller, CV sequencer (with expander)

INS / OUTS

1 USB in/out, 1 microphone in, 1 stereo output, additional expandable outputs

Expander

Oplab Module ZM-1, Mini MIDI Adapter Kit (with ZM-1), OP-Z Grip Knobs, Roll Up Bag, iOS devices for screen

Dimensions

22cm x 5.5cm x 1cm 11" x 2.9" x 0.5"

Max. module depth

N/A

Power

USB-C or batteries

Weight 258 g
Manufacture Page

https://teenage.engineering/products/op-z

Manual

https://teenage.engineering/guides/op-z
