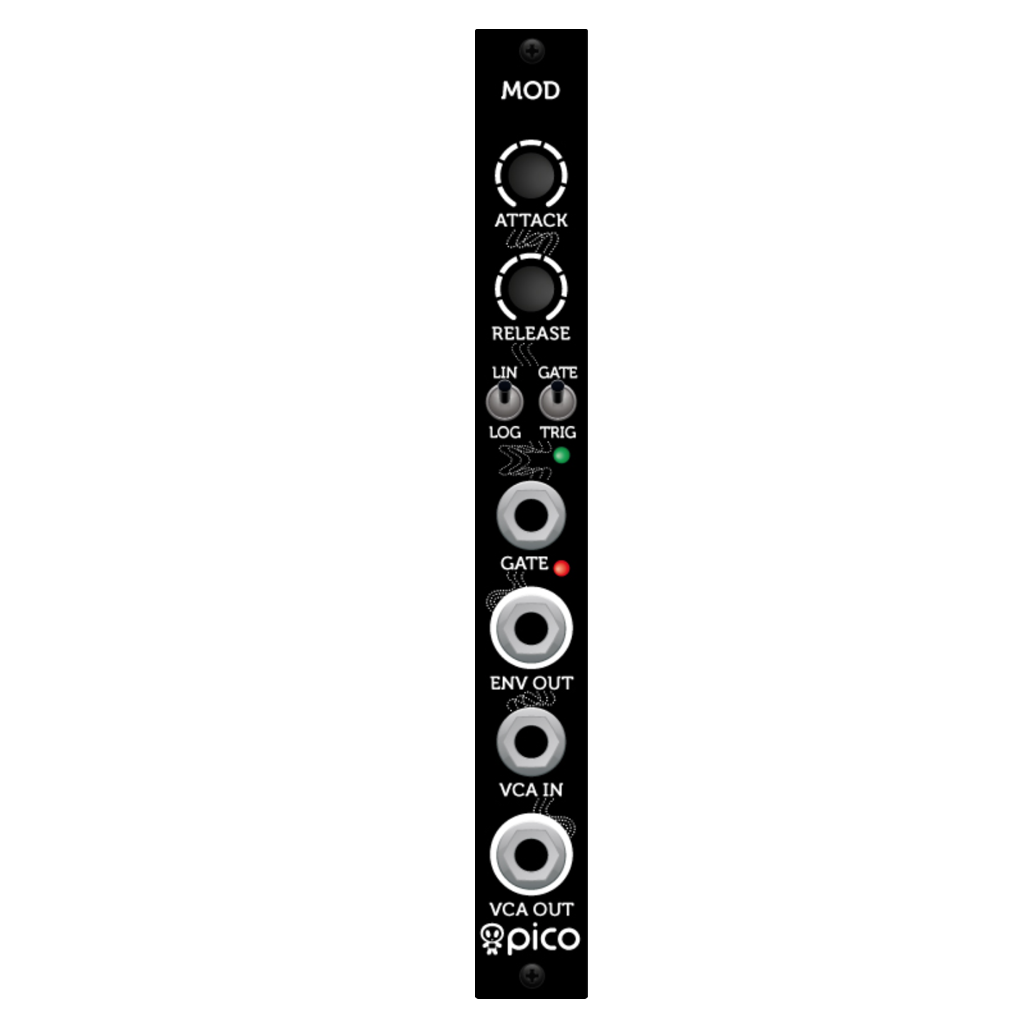

Erica Pico Modulator combines Envelope Generator and VCA in one module with straight-forward controls for live performances.
Features:
- Selectable AD or ASR modes
- Selectable lin or log envelope shapes
- Loop mode without Gate in
- Envelope output
- Gate in and output signal control LEDs
With Pico Series we challenged ourselves – can we make ANY superior functionality synth module 3HP wide and affordable? Yes, we can.
Technical specification:
Attack time |
0-4" (8" in loop mode) |
Decay/Release time |
0-4" (8" in loop mode) |
EG amplitude |
0V – 10V |
VCA attenuation level (0V CV In) |
-80dB |
VCA gain |
1 |
Power consumption |
+28mA, -5mA |
Module width |
3HP |
Module depth |
35mm |
Erica Pico MOD on Modulargrid
