Programmable Spectral Processor Model 296t

Programmable Spectral Processor Model 296t

Buchla & Tiptop Audio

Regular price $712.00 Sale

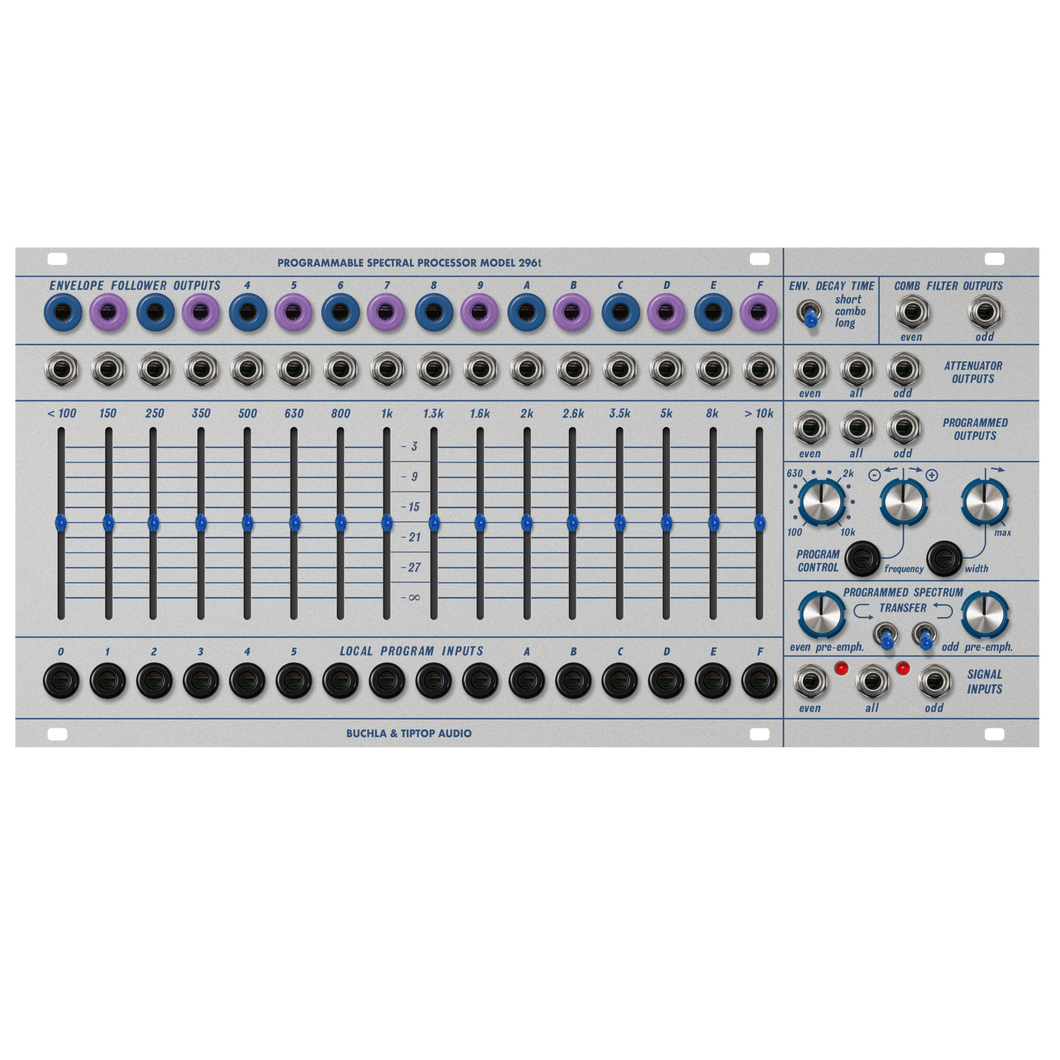

The PROGRAMMABLE SPECTRAL PROCESSOR is an elaborate set of filters with a number of different outputs and special functions. Perhaps its most obvious function is that of a sixteen band "graphic equalizer". The sixteen bands are labeled in hex numerals (0 through F) at the top and bottom of the module and the centre frequency of each band is indicated above each slider attenuator.


The signal input jacks, in the bottom right, oer the choice of putting a signal into the eight even numbered bands, all sixteen bands, or the eight odd bands. Note that these are just the even or odd numbered bands on the equalizer and have no correspondence to even or odd harmonics.) The ATTENUATOR OUTPUTS on the right of the module also oer "even", "odd", or "all" signal outputs. With a signal patched into the "ALL" signal input and taken out through the "ALL" attenuator output the module functions just as a sixteen band graphic equalizer. Note on the scale for the attenuators that -3dB is the top range of the sliders and that a slider at the very top is actually giving -3dB to frequencies in that band. An attenuator at the very bottom will completely cut o any signal in that frequency band.

The signal output jacks directly above each attenuator oer the signal present within that frequency band at 0dB. These outputs are not affected by the attenuator's positions. The COMB FILTER, outputs oer the signals from either all the “even” or all the "odd" bands and are also unaffected by the attenuators and are set at 0dB.


The control voltage outputs labeled ENVELOPE OUTPUTS are envelope follower outputs for each frequency band. In other words, the voltage from these outputs represents the amplitude of the signal present within each band. The switch in the upper right selects "long" “combo” or "short" envelope decay times. These outputs are not affected by the positions of the attenuators.


The SPECTRAL PROCESSOR can be voltage controlled in a variety of ways. The results of any control voltage manipulation are presented to the PROGRAMMED outputs. It is possible to "sweep" through the various frequency bands (much like a bandpass filter can "sweep" the frequency spectrum) using the left knob on the PROGRAM CONTROL section. This knob can be voltage controlled through the control voltage input labeled FREQUENCY. The knob beside the input is an inverting attenuator the same as others on the synthesizer. On the right is a WIDTH control knob which determines the widths of the sixteen frequency bands. The labeling above each attenuator indicates the approximate center frequency of each band. Notice that as the bandwidth gets very narrow "gaps" appear between each band and then the bands disappear completely and no signal is passed. At the MAX setting each band is so wide as to encompass the entire frequency spectrum and the FREQ control will have no effect. This knob can be voltage controlled but it has no attenuator on the control voltage. The LOCAL PROGRAM INPUTS allow individual voltage control of the signal level in each frequency band. With no control voltage the signal for that band is cut o. As a control voltage increases the signal is gradually unattenuated.


The pair of knobs and switches labeled PROGRAMMED SPECTRUM TRANSFER have a function often associated with a "vocoder" circuit. The left switch, when up, patches each "even" envelope follower output into its neighboring "odd" control voltage input. In effect this causes the SPECTRAL PROCESSOR to analyze the signal present at the "even" input and to duplicate its frequency spectrum in the "odd" bands. If the signal presented to the "odd" input has a broad enough frequency spectrum itself the "odd" PROGRAMMED OUTPUTS will match timbres with the "even" signal. The right switch performs the same function going from "odd" to "even".

If a microphone signal is the signal being analyzed, a harmonically rich signal from an oscillator can be made to duplicate vowel sounds in speech. (This is known as a "vocoder" patch.) For this to work best the input signal requires special equalization, This is the purpose of the two knobs next to the switches. When turned to the right they boost the treble range of the "even" and "odd" input signals respectively. Since they affect both the ATTENUATOR and PROGRAMMED outputs they should be turned down (to the left) unless setting up' a "vocoder" patch.

Be aware that the BANDWIDTH and FREQUENCY controls are still in eect when using these switches. For best results in a "vocoder" patch, BANDWIDTH should be set to minimum and FREQUENCY set to minimum.


The leds are driven from the Envelope Followers and help to indicate when a 10Vpp signal (such as one from the 258t) hit right on the frequency of a specific band, pushing its envelope follower up to it’s maximum CV value of 10V. When using a “vocoder” patch the output signal gain might be low, setting the vco right at a center of a band using the LED helps maximize the gain output. These lights do not indicate distortion or overdrive.
