Super 6 Binaural Analog-Hybrid Synthesizer (Desktop Version)

UDO Audio

Regular price $17,000.00 HKD Sale

THE SUPER COMPACT
SUPER 6 DESKTOP

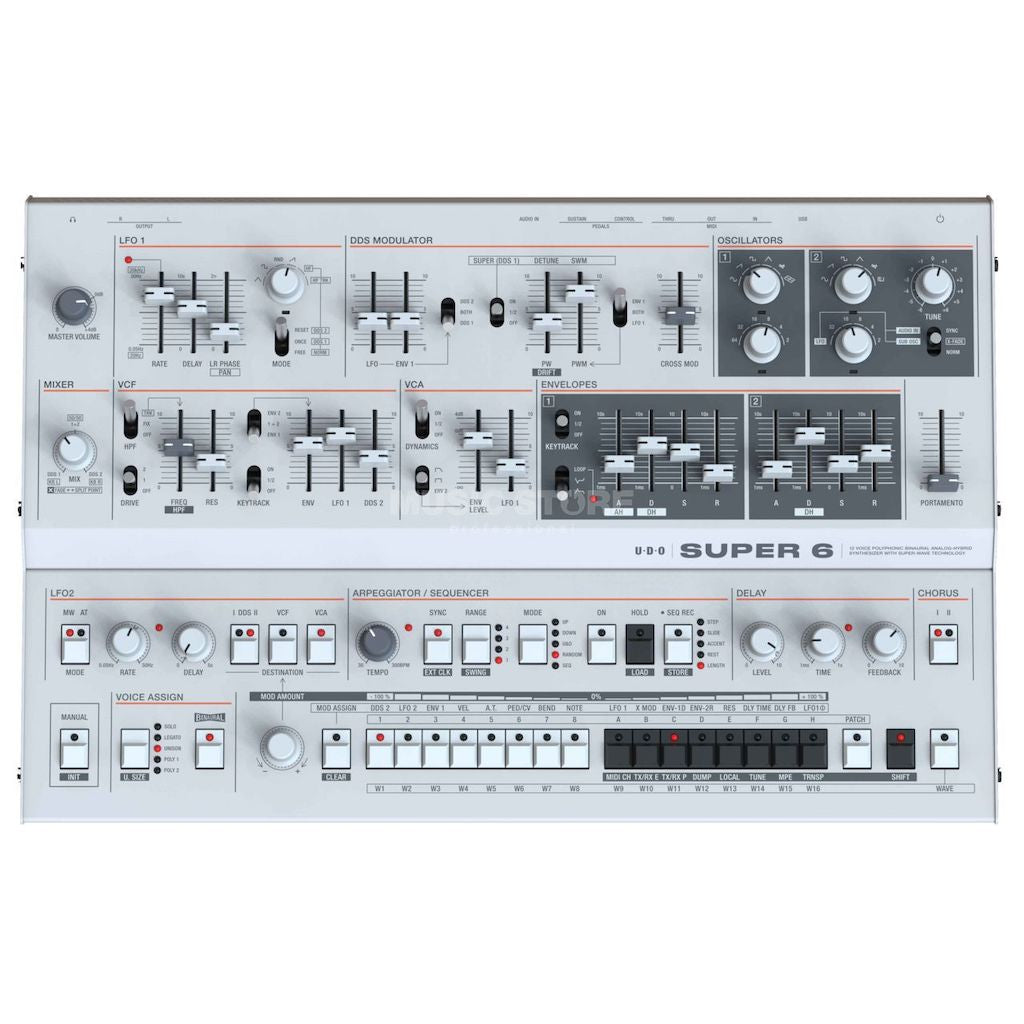

Offering the flexible and immediate control, gorgeous analog sound and unrivalled build quality of the Super 6, but in a more compact package. The Super 6 Desktop is a fully-featured Super 6 analog-hybrid 12 voice synthesizer, housed in a newly designed all-metal chassis. The Super 6 Desktop also includes ergonomic features such as VESA mount compliance, optional rack ears (7U) and robust flip up feet, as well as a huge 24-voice Super 6 polychain option (in a future update).

About the Super 6

The Super 6 is a 12-voice polyphonic, binaural analog-hybrid synthesizer. A harmonious marriage of state of the art FPGA digital hardware oscillators and voltage controlled analog technology. It is flexible, immediate, powerful and refined with a gorgeous analog tone. Rich and evolving textures are easily teased from the unique super-wavetable core and can be shaped and manipulated with the binaural analog signal path and flexible modulation. Robust, compact and inviting to pick up and play with smooth, solid and responsive controls throughout, it cries out to be played.

INSPIRED BY THE CLASSICS, BUILT FOR TODAY

The Super 6 is an instrument that is borne of a long-held passion for synthesizers. In designing the Super 6 we wanted to create an instrument that feels familiar at first glance, but offers new and inspiring opportunities when delving deeper. The layout and aesthetic is an homage to some of the classic synthesizers that have inspired us for many years — the instrument's features and capabilities bring these ideas firmly into the 21st century.

BINAURAL ANALOG
SIGNAL PATH

In Binaural mode, the Super 6 features a true stereo signal path in which the instrument’s twelve voices are twinned to form six stereo ‘super’ voices. Consequently, the left and right channels — and each of the player’s ears — are assigned their own complete synthesizer voice. Parameters for both channels of each super voice may be independently controlled, facilitating the player to create rich and unique stereo images. The effect ranges from subtle to extreme stereo movement, creating an enhanced sense of spatial positioning relative to “conventional” monaural signal-chains panned at their output.

MASSIVE MODULATION
WITHOUT MENUS

Enormous flexibility at the player's fingertips through simple controls and a carefully designed front-panel. Going deeper, there is an intuitive and immediate modulation system based around the performance area switches. For those who want to go further, every panel control can be targeted for modulation, all simultaneously and all with unique amounts.

ANALOG VOICE
ARCHITECTURE

The Super 6’s main filter is an analog 4-pole, 24 dB per octave, resonant low-pass filter using a classic polysynth filter design from Sound Semiconductor (SSI).
It is preceded in the signal chain by a voltage controlled high-pass filter that can either be off, fixed, or can also track the low-pass filter cutoff frequency for band-pass operation. The Super 6 also contains an analog amplifier section that can further be used to shape the sound by adjusting and modulating the amplitude or loudness over time.
